Telecommunication Optical Line Terminal

An Optical Line Terminal (OLT) is the central device in a Passive Optical Network (PON) that converts electrical signals to optical signals, manages bandwidth, and connects multiple end-user devices over fiber-optic infrastructure.

Definition and Role

An OLT, also called an optical line termination, is a network device located at the service provider's central office or data center. It serves as the endpoint of a passive optical network (PON), connecting the provider's backbone network to multiple customer endpoints through optical fibers and splitters . Essentially, it translates standard Ethernet/IP signals into optical signals and coordinates communication with Optical Network Units (ONUs) or Optical Network Terminals (ONTs) at the subscriber side .

Core Functions

The OLT performs several critical functions in a PON:

• Signal Conversion: Converts electrical signals from the service provider into optical signals for transmission over fiber and vice versa .
• Bandwidth Management: Allocates bandwidth dynamically to connected ONUs/ONTs using Dynamic Bandwidth Allocation (DBA) to optimize network performance .
• Traffic Coordination: Synchronizes upstream and downstream communication, ensuring data packets reach the correct subscriber without collisions .
• Security and Fault Management: Implements security protocols and monitors network health, detecting faults and maintaining service reliability .
• Service Delivery: Supports multiple services such as internet, voice, and video over a single fiber infrastructure .

Types and Classifications

OLT devices vary based on network requirements and deployment scale:

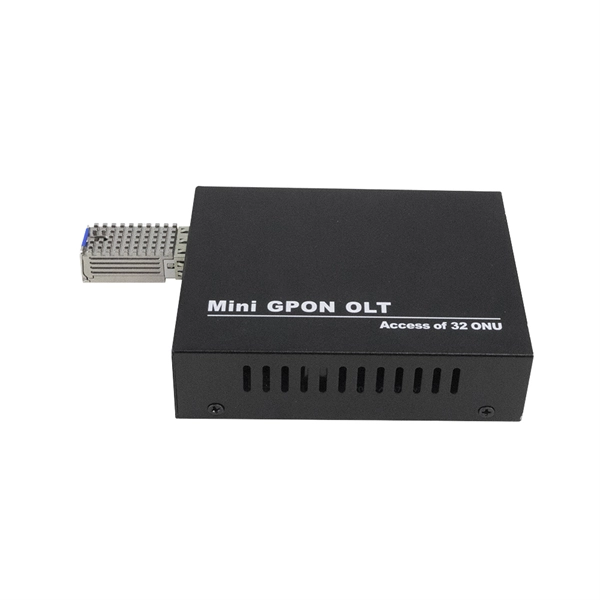

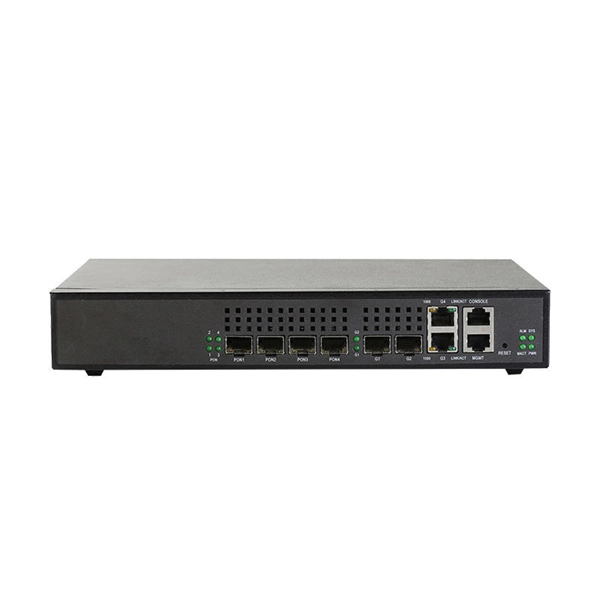

• Box-type OLTs: Compact, integrated devices suitable for small-scale or distributed networks, typically with 2–16 PON ports .
• Rack-mounted OLTs: Modular, scalable devices designed for large-scale deployments, supporting high port counts and redundancy for telecom operators and data centers .
• Combo OLTs: Support multiple PON standards simultaneously, such as GPON, XGS-PON, 10G-EPON, and 10G Combo PON, facilitating seamless network upgrades .
• Power Supply Configurations: Single or dual power supply designs ensure continuous operation, with dual power modules providing redundancy for high-stability networks .

Deployment and Applications

OLTs are deployed in various scenarios:

• FTTH (Fiber-to-the-Home): Connecting residential subscribers in urban, suburban, and rural areas .
• Enterprise Networks: Providing high-speed connectivity for offices, hotels, and multi-dwelling units .
• Smart Cities and IoT: Supporting large-scale, high-bandwidth applications with scalable and flexible OLT solutions . Each OLT port can serve multiple ONUs/ONTs, with split ratios typically ranging from 1:32 to 1:128 depending on the PON standard, allowing efficient utilization of fiber infrastructure .

Summary

The OLT is the backbone of PON-based broadband networks, acting as the “brain” of the system. It ensures high-speed, reliable, and secure delivery of data, voice, and video services to multiple subscribers over a shared optical fiber network. Modern OLTs are scalable, flexible, and capable of supporting next-generation applications like 5G, IoT, and high-capacity FTTH deployments .
