Fiber Optic Cable Routing and Laying Methods

Fiber optic cables are routed and laid using specialized methods such as aerial, direct-buried, indoor, and submarine techniques, with careful planning to ensure performance, safety, and future scalability.

Planning and Routing

Effective fiber optic installation begins with route planning and site assessment. A thorough site survey identifies endpoints, intermediate equipment rooms, and potential obstacles like HVAC ducts, steel beams, or underground utilities. Conduits should include 25–40% extra space for future expansion, and local permits and building codes must be verified before installation ( ). Proper planning ensures minimal signal loss and reduces the risk of cable damage during deployment.

Cable Laying Methods

1. Aerial Installation

Aerial fiber is mounted on poles or existing utility lines. This method is cost-effective for urban and suburban areas but requires attention to tension, sag, and environmental exposure. Proper anchoring and weatherproofing prevent damage from wind, ice, or UV exposure ( ).

2. Direct-Buried Installation

Cables are laid underground using trenches or plowing techniques. Armored cables are often used to protect against mechanical damage. Direct-buried installation is suitable for long-distance runs and provides protection from environmental hazards, but care must be taken to avoid sharp bends and excessive pulling tension ( ).

3. Indoor Installation

Indoor fiber connects devices within buildings, such as offices or data centers. Cables are routed through conduits, cable trays, or raceways, adhering to fire safety standards. Proper slack, bend radius, and labeling are critical to maintain signal integrity and facilitate future maintenance ( ).

4. Submarine Installation

Submarine fiber optic cables connect continents or islands. Specialized ships and plows lay cables on the seabed, burying them in shallow waters for protection. At landing points, watertight splice boxes connect submarine cables to terrestrial networks. Continuous monitoring and maintenance are essential to address natural hazards like earthquakes or fishing activity ( ).

Deployment Techniques

• Cable Pulling: Fiber is manually or mechanically pulled through conduits. Suitable for shorter runs or where compressed air systems are impractical. Pulling tension must remain within manufacturer specifications to prevent fiber damage ( ).
• Cable Blowing: Compressed air propels fiber through ducts, reducing stress on the cable. Ideal for long-distance runs and existing underground conduits ( ).

Connection and Testing

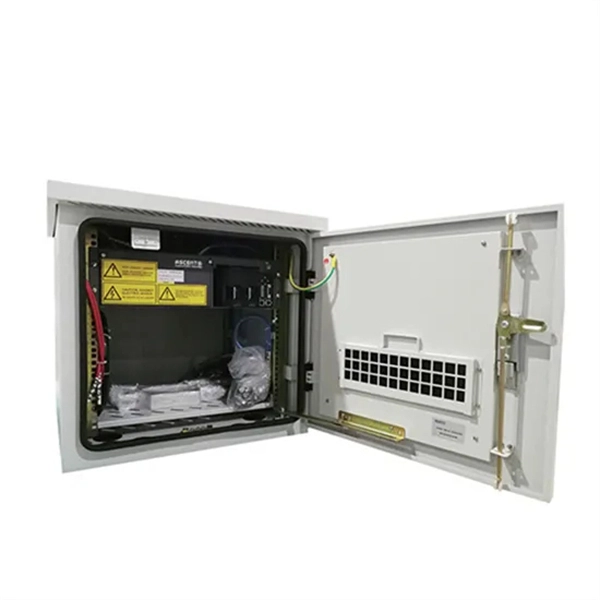

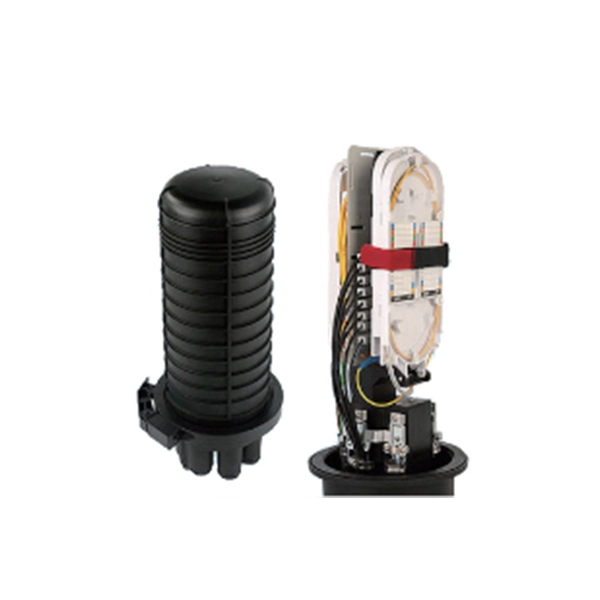

After laying, fibers are spliced using fusion or mechanical splicing, and terminated at network devices. Testing with OTDR (Optical Time-Domain Reflectometer) and OLTS (Optical Loss Test Set) ensures proper signal transmission, identifies bends, splices, or contamination, and verifies compliance with ANSI/TIA-568 standards ( ).

Best Practices

• Maintain minimum bend radius to prevent signal loss.
• Monitor tensile load during pulling to avoid fiber breakage.
• Use environmental protection for moisture, temperature extremes, and mechanical stress.
• Document cable routes, slack loops, and port connections for future maintenance ( ). By following these routing and laying methods, fiber optic networks achieve high-speed, low-latency, and reliable performance for both commercial and residential applications, while remaining scalable for future upgrades.
