Fiber optic lc interface plugging and unplugging

LC connectors should be plugged and unplugged carefully using the push-pull latch mechanism to maintain alignment, minimize signal loss, and preserve connector longevity.

Proper Handling of LC Connectors

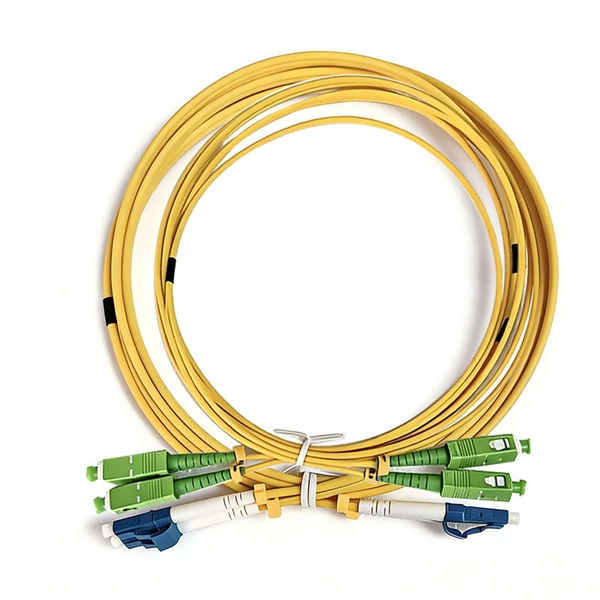

LC (Lucent Connector) interfaces are small form factor fiber optic connectors with a 1.25mm ceramic ferrule that aligns the fiber cores with sub-micron precision . The push-pull latch secures the connector in place, allowing easy insertion and removal without twisting or excessive force . Proper handling is critical because misalignment or contamination can cause insertion loss, return loss, or permanent damage to the ferrule end-face .

Plugging LC Connectors

1. Inspect and Clean: Always inspect the ferrule end-face for dust or debris. Use a fiber-cleaning pen or alcohol-soaked lint-free wipes .
2. Align Carefully: Ensure the connector is oriented correctly with the adapter or transceiver port. LC connectors are keyed to prevent incorrect insertion .
3. Push Gently: Insert the connector straight into the port until the latch clicks, indicating a secure connection . Avoid bending the fiber cable sharply near the connector.

Unplugging LC Connectors

1. Depress the Latch: Press the push-pull latch to release the connector from the port .
2. Pull Straight Out: Remove the connector in a straight motion without twisting or applying lateral force to prevent ferrule misalignment .
3. Cap Unused Connectors: Immediately cover the ferrule with a dust cap to prevent contamination .

Best Practices

• Minimize Mating Cycles: LC connectors are rated for 500+ mating cycles; frequent plugging/unplugging can degrade performance .
• Avoid Touching Ferrules: Oils and dirt from fingers can increase insertion loss .
• Store Properly: Keep unused connectors capped and cables coiled without tight bends .
• Use Proper Tools: For high-density panels, consider LC uniboot or pull-tab designs to reduce stress during removal .

Summary

Correct plugging and unplugging of LC fiber optic connectors involves cleaning, careful alignment, gentle insertion, and proper latch operation. Following these practices ensures low signal loss, high return loss performance, and long connector life, which is especially important in high-density data centers and telecom networks .
