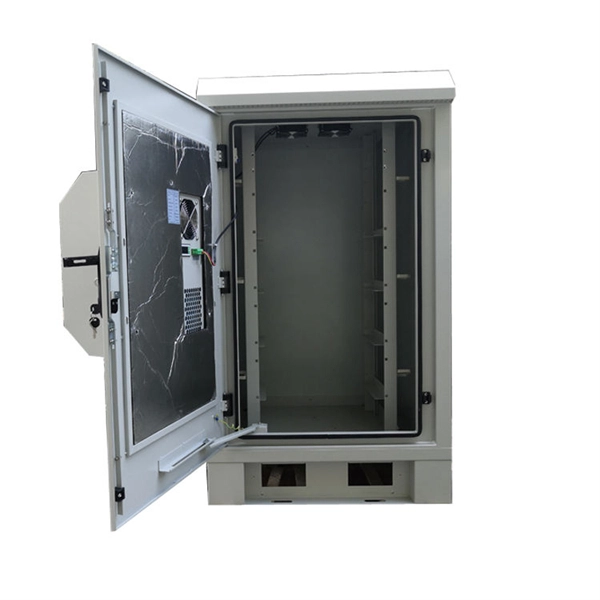

Grounding of Standard Construction Site Distribution Box

Proper grounding of a distribution box ensures electrical safety, minimizes fault risks, and requires correct materials, connections, and resistance control.

Key Principles of Grounding

Material Selection: Use copper conductors for all grounding connections, especially for buried runs, as aluminum corrodes over time and reduces conductivity. For stainless steel enclosures, ensure connectors match the enclosure material to prevent electrochemical corrosion, and remove oxide layers at contact points to reduce resistance . Connection Methods:

• Bond moving parts, such as hinged doors, using flexible copper braided tape to maintain stable contact.
• Use anti-loosening washers to prevent loosening from repeated door operation.
• Apply conductive paste at crimping points to protect against moisture and oxidation . Wire Sizing:
• In the US, a 10 AWG (5.26 mm²) ground wire is standard; in other markets, 6 mm² is typical.
• For connections between mounting plates and spindle plates, larger wires (e.g., 16 mm² or 6 AWG) may be required depending on cable length and number of spindles to maintain low resistance . Grounding Resistance:
• The total resistance between all system parts should be less than 0.1 Ohm.
• Test each installation to ensure compliance, as high resistance can compromise safety and increase the risk of electrical faults . Installation Practices:
• Utilize pre-reserved grounding points on the enclosure and mounting plates.
• Ensure grounding rods are installed in formal, non-rocky soil where possible, and bond all overhead line distribution equipment to the ground system .
• For outdoor or high-humidity environments, condensation can accumulate at grounding points; proper bonding and protective coatings extend maintenance intervals and reduce localized overheating . Maintenance and Verification:
• Regularly inspect connections for corrosion or loosening.
• Measure grounding resistance periodically to ensure it remains within the required limits.
• Partner with certified suppliers to ensure copper purity and quality of grounding materials . By following these guidelines, a construction site distribution box can be safely grounded, protecting both personnel and equipment from electrical faults while ensuring compliance with industry standards.
